ΒΆ A Step-by-Step Guide to Enhancing Window blind Functionality for Better Comfort and Efficiency
Adjusting the windows on your ZONR RV may be necessary as the van moves around and this can change the tension on the windows. Adjusting the tension will ensure that your windows function properly and maintain their intended performance. In this article, we will guide you through the process of adjusting your RV windows to keep them functioning as they should.
Step-by-Step Guide to Adjusting ZONE RV Windows
Identify the Type of Window

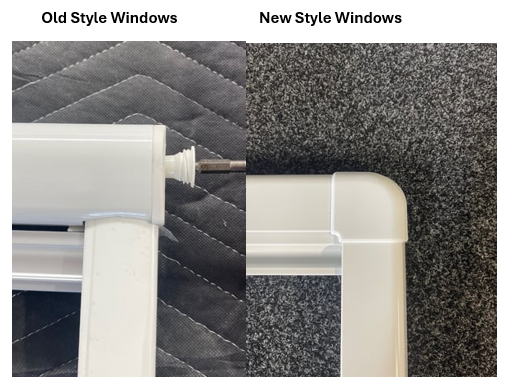

ZONE RVs feature two different types of windows, which can be identified by the photos below. Understanding which type of window you have will help determine the proper method for adjustment.

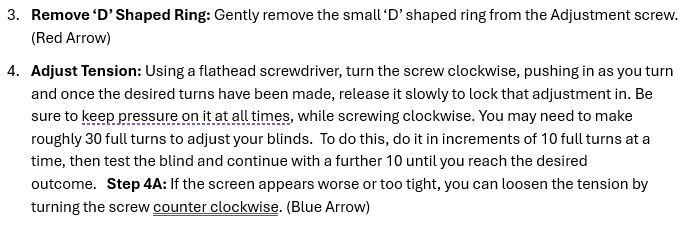

Adjusting New Style Windows
Tools and Materials Needed:
- Flathead screwdriver
- Open: Ensure the window blinds are in the open position - so you can see out the window.
- Remove Corner Trim:

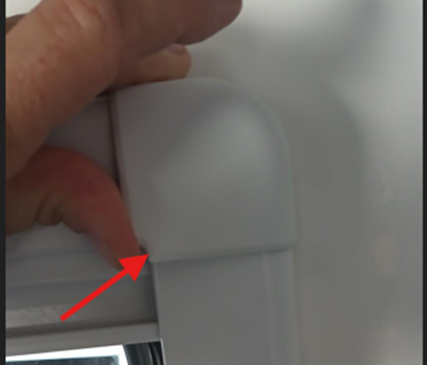

You do not require any tools to remove the corner trim. Simply unclip it from the one corner, using your thumb as shown below.
To adjust the fly mesh, you would need to carefully take off the corner trim at the top right-hand side of the window frame to expose the adjustment mechanism. To adjust the privacy screening, you would need to carefully take off the corner trim at the bottom left corner of the window frame to expose the adjustment mechanism.

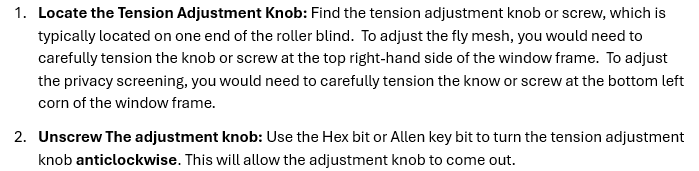

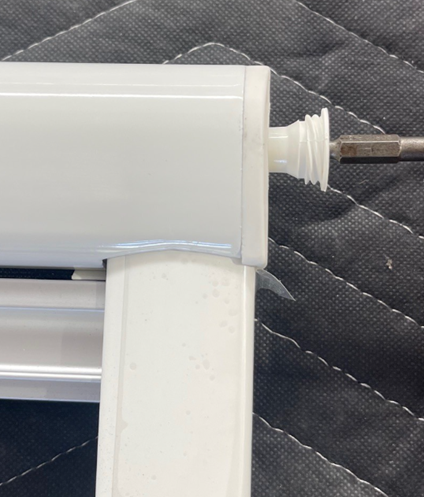

Adjusting Old Style Windows
Tools and Materials Needed:
- Hex bit or Allen key bit.
