¶ A Guide to Filling Your Water Tanks and Maintenance - Base Models
The water connection manifold in your caravan is an essential component that allows you to fill your water tanks easily and efficiently. Understanding how to use it correctly and maintain it properly can ensure that you have access to clean water while on the road.

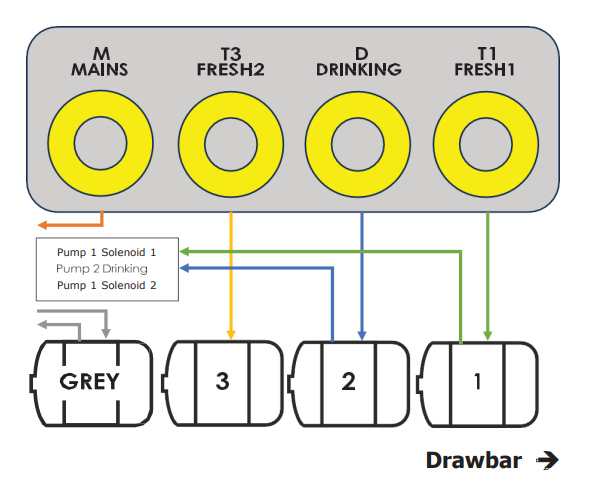

Location: The water connection manifold is located on the driver's side of your caravan, behind the rear wheel. It features several inlets labelled (Mains), (Tank 3), (Tank 2 - designated drinking water) and (Tank 1). The couplings suit a standard 13mm garden hose connection.
Tank 1 is located nearest to the draw bar. Tank 1 and Tank 3 provide water for use in the Vanity bason, Shower and Kitchen sink.
Tank 2 (Drinking water) is located second from the draw bar and provides water to the secondary faucet located on the kitchen tap for drinking purposes.
The Mains connection provides water directly to the Vanity Basin, Shower and Kitchen sink bypassing the Fresh Water pump from Tank 1 and Tank 3.
¶ Filling Your Water Tanks:
To fill your water tanks, follow these simple steps:
- Ensure that your tanks are not already full by checking the tank gauge on your display. The levels are not progressive and will only show percentages.
- Plug a hose onto the inlet for the tank you wish to fill. Visual inspection is required when filling to ensure that breathers are not blocked and that the tank is not expanding.
- Do not fill with full mains pressure, only half pressure. This means that you should only open the tap partially. This ensures that the breathers on top of the tanks can keep up with the amount of water entering the tank and that you will not damage any fittings.
- Keep an eye on the level display to make sure the correct tank is filling, and you do not overfill the tank.
Note: If you overfill the tank, water will be forced out of the tank breathers and onto the ground. If this happens, stop filling the tank and give it time to relieve the pressure in the tank.
Maintenance
Proper maintenance of your water connection manifold is essential to ensure that it continues to function correctly. Here are some tips to help you keep it in good working order:
Periodically wash off the top of your tanks to remove any build-up of dust or dirt that may accumulate after long periods of dirt road travel.
Inspect the tank breathers for obstruction. If they are blocked, it can prevent proper ventilation of the tanks, leading to problems with the water system.
Keep rubber caps on the inlet connectors when not in use to prevent debris and insects from getting into the system.
The water connection manifold in your caravan is an important component that allows you to fill your water tanks quickly and easily. By following the steps outlined in this article and performing regular maintenance, you can ensure that your water system is functioning correctly and that you have access to clean water while on the road. Remember, if you have any questions or concerns about your water connection manifold, it is always best to consult with a qualified professional to ensure that you are getting the most out of your investment.
Disclaimer: The information provided in this article is based on the knowledge available up to 2021 and is intended for informational purposes only. It is not intended as a substitute for professional advice, and any reliance you place on such information is strictly at your own risk.
